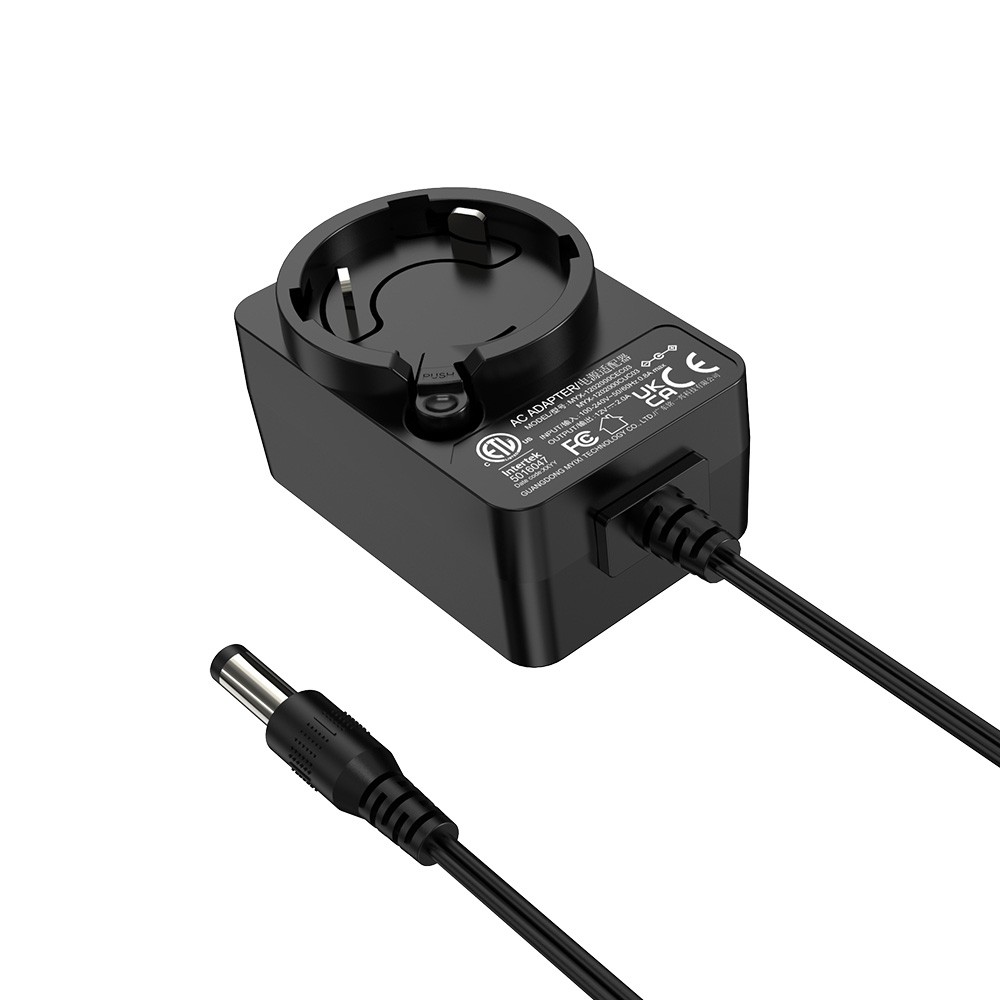

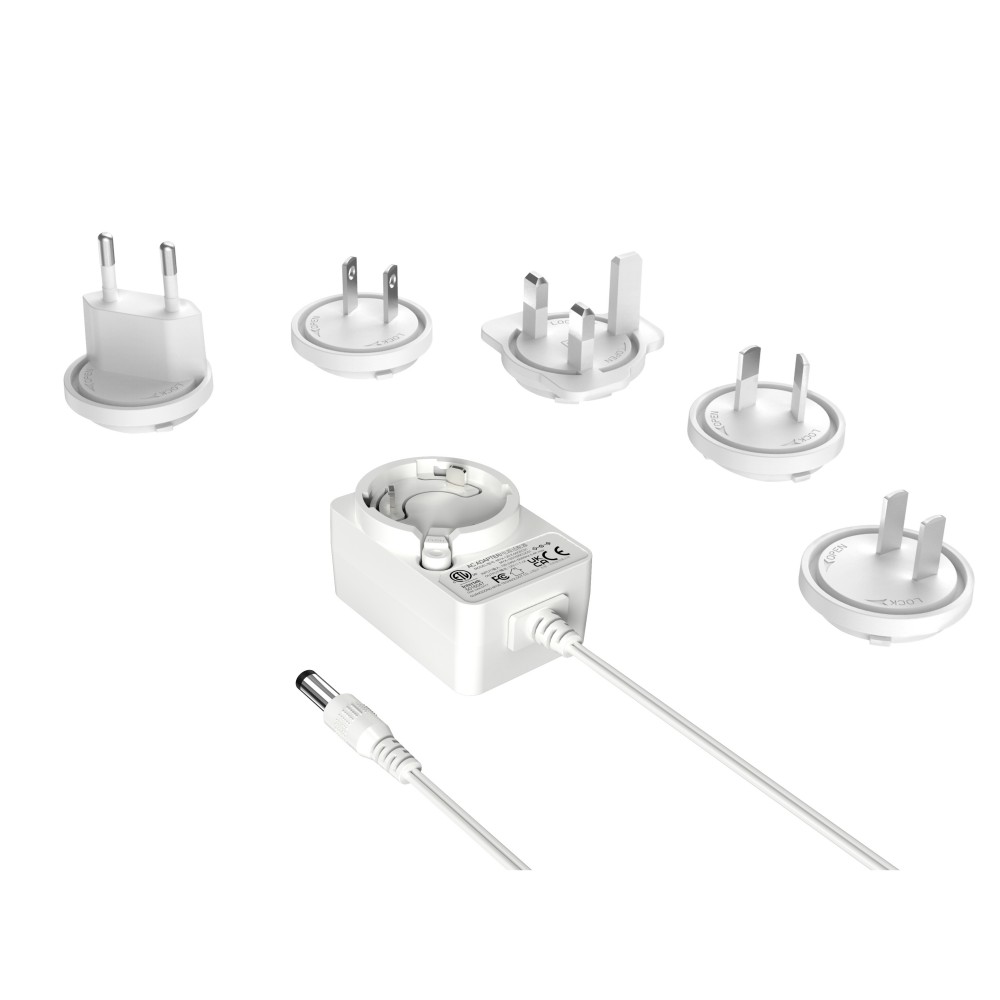

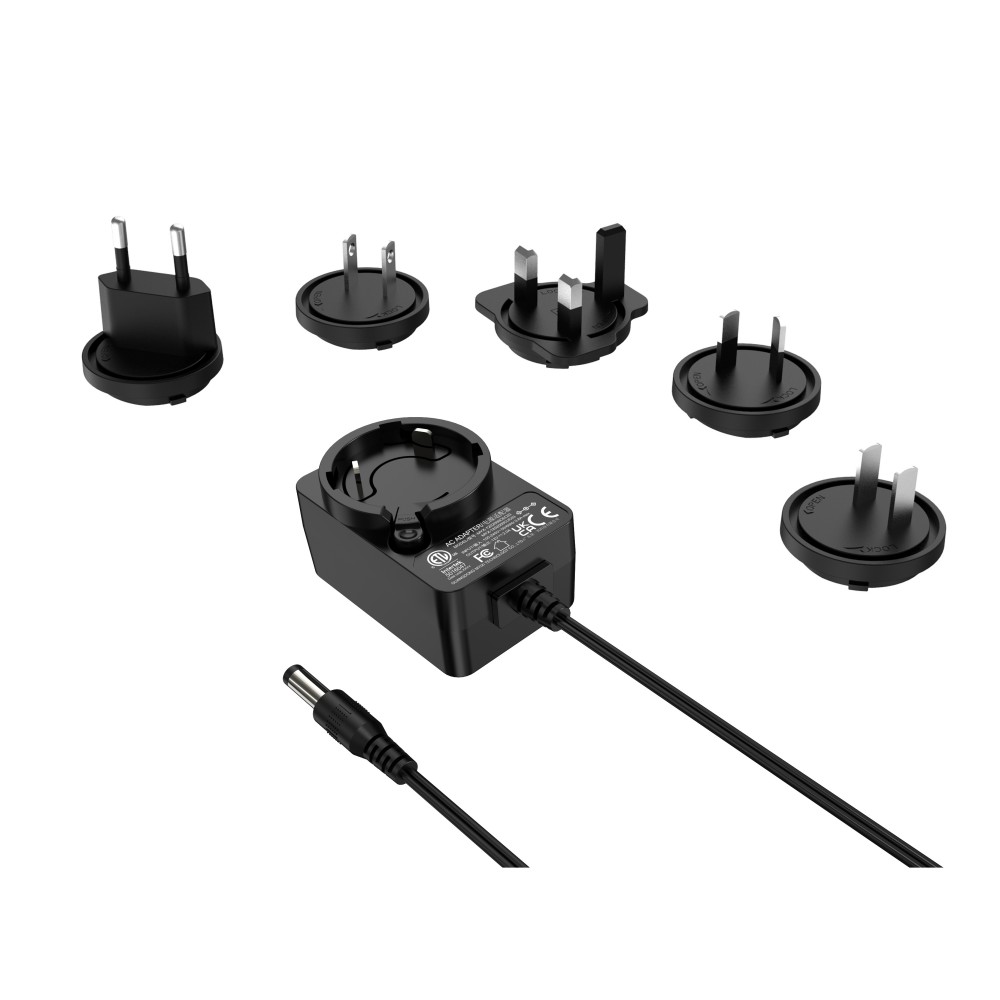

24W Interchangeable Power Adapter
Series Overview
This interchangeable plug power adapter series covers an output range from 6W to 24W, designed for global applications requiring flexible and efficient power solutions.
Featuring a modular plug system, the adapter supports quick replacement of AC plugs for different regions, making it ideal for international distribution and multi-market products.
With a compact enclosure of 59 × 40.5 × 26.5mm and available in both black and white finishes, this series offers a balance between versatility, portability, and cost efficiency.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-12W-INT | 5–12V | up to 1.5A | 6–12W | Interchangeable (EU/US/UK/AU) | Standard | 0A | up to 1.5A | ±5% | ±1% | 120mV | Compact |
| MYX-18W-INT | 5–15V | up to 2A | 12–18W | Interchangeable (EU/US/UK/AU) | Standard | 0A | up to 2A | ±5% | ±1% | ≤150mV | Standard |
| MYX-24W-INT | 9–24V | up to 2A | 18–24W | Interchangeable (EU/US/UK/AU) | Standard | 0A | up to 2A | ±5% | ±1% | ≤240mV | High Output |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 6–24W
Wide output voltage configurations
High efficiency design meeting international energy standards
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
Mechanical Specifications
Housing type: Wall-mounted interchangeable adapter

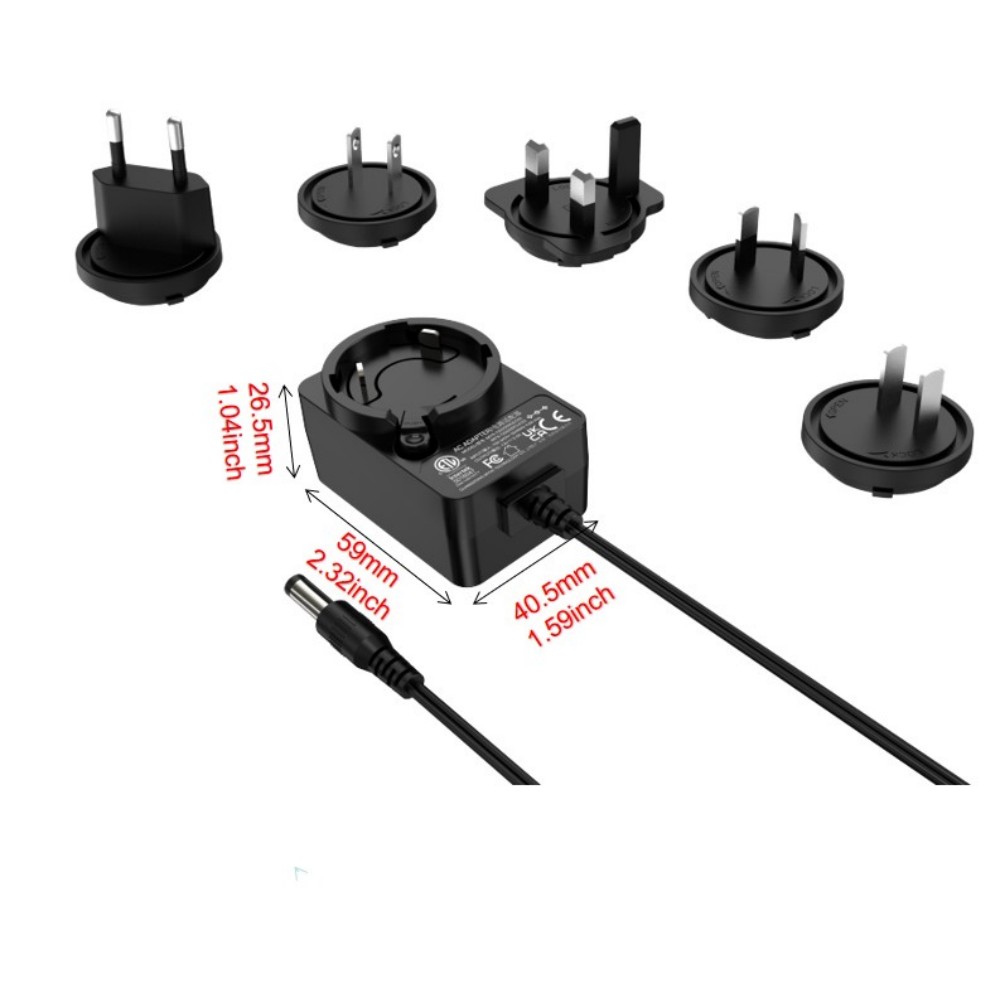

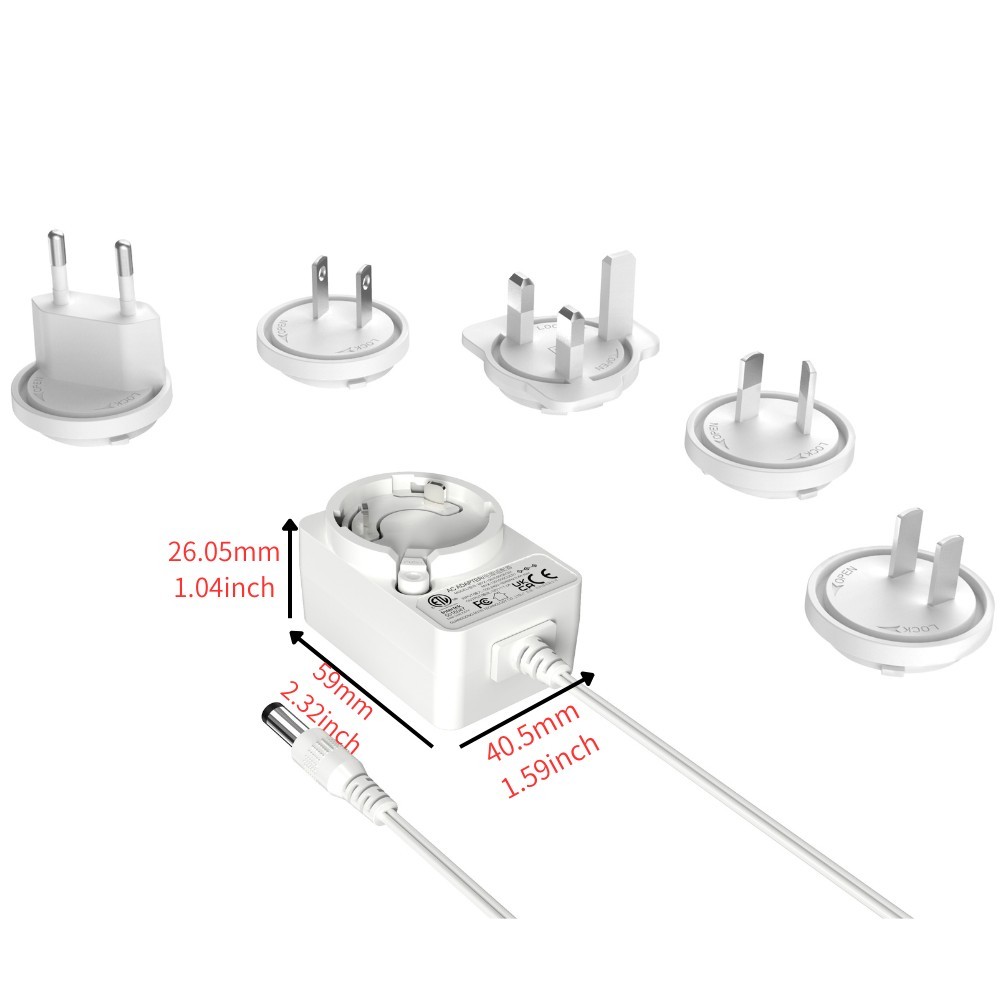

Dimensions: 59 × 40.5 × 26.5mm
Color: Black / White
AC interface: Replaceable plug system
Output interface: DC plug
Features
Interchangeable plug design for global markets
Supports EU, US, UK, and AU plug standards
Reduces SKU complexity and inventory costs
Ideal for international distribution and multi-region products
Compact and lightweight structure
Available in black and white color options
Model Coding
Model codes indicate power rating, output configuration, and connector type. Detailed model coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
