48W Interchangeable Power Adapter
Series Overview
This 37–48W interchangeable plug power adapter series is designed for higher power applications requiring global compatibility and flexible installation options.

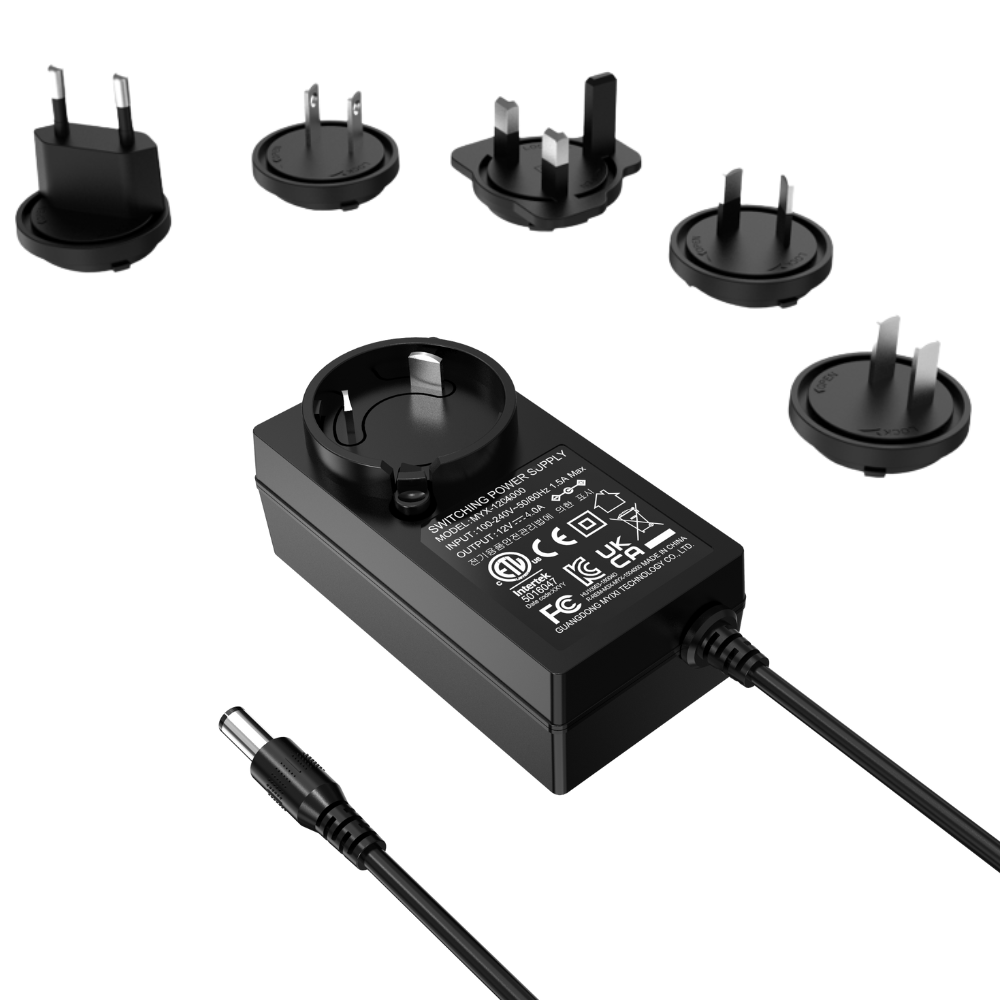

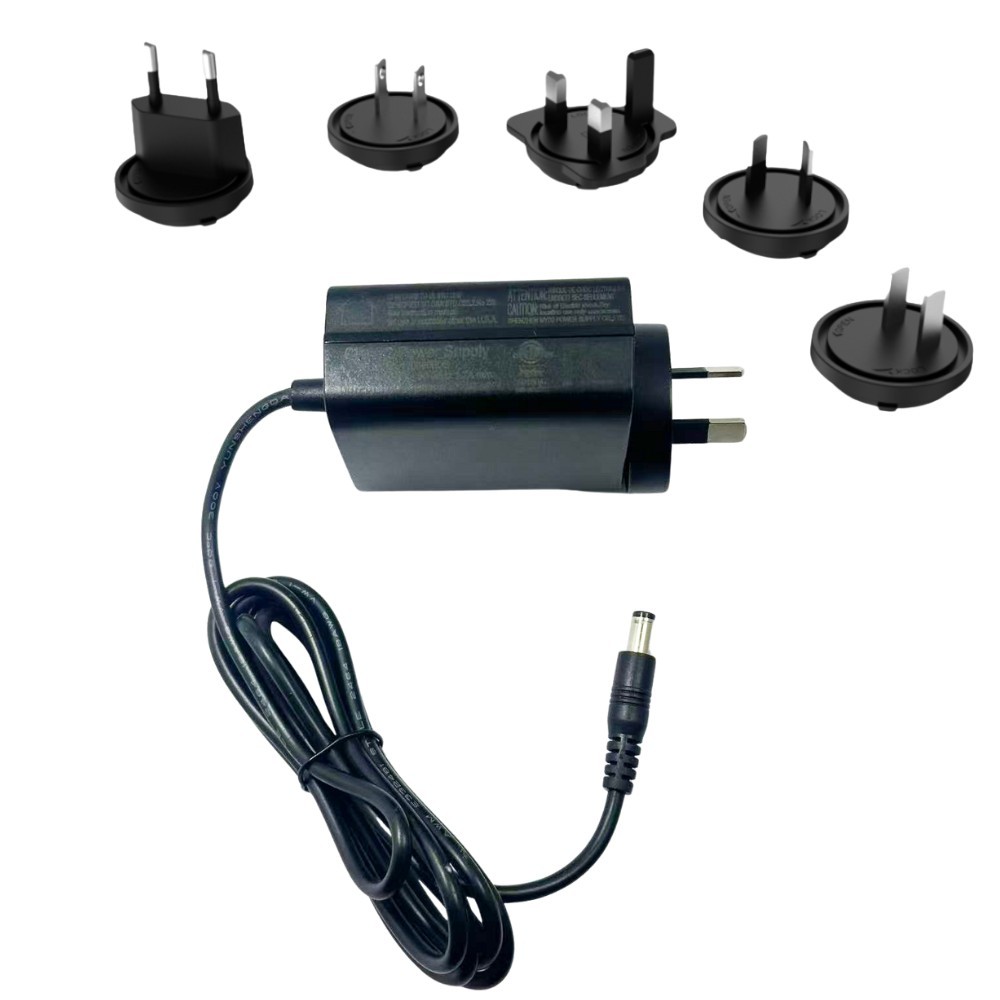

Featuring a modular plug system supporting EU, US, UK, and AU standards, this series enables efficient inventory management and simplified international distribution.
Two enclosure sizes are available to meet different application requirements, offering flexibility between compact design and enhanced thermal performance.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-48W-INT | 12–15V | up to 4A | 48W | Interchangeable (EU/US/UK/AU) | Standard | 0A | up to 4A | ±5% | ±1% | ≤150mV | High current low voltage |
| MYX-48W-UNI | 15–24V | up to 3A | 48W | Interchangeable (EU/US/UK/AU) | Standard | 0A | up to 3A | ±5% | ±1% | ≤240mV | Industrial applications |
| MYX-48W-HV | 24–36V | up to 2A | 48W | Optional | Optional | 0A | up to 2A | ±5% | ±1% | ≤300mV | High voltage output |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 37–48W
Stable DC output with multiple voltage configurations
Designed for long-term continuous operation
Full protection: Over-voltage, over-current, short-circuit, and thermal protection

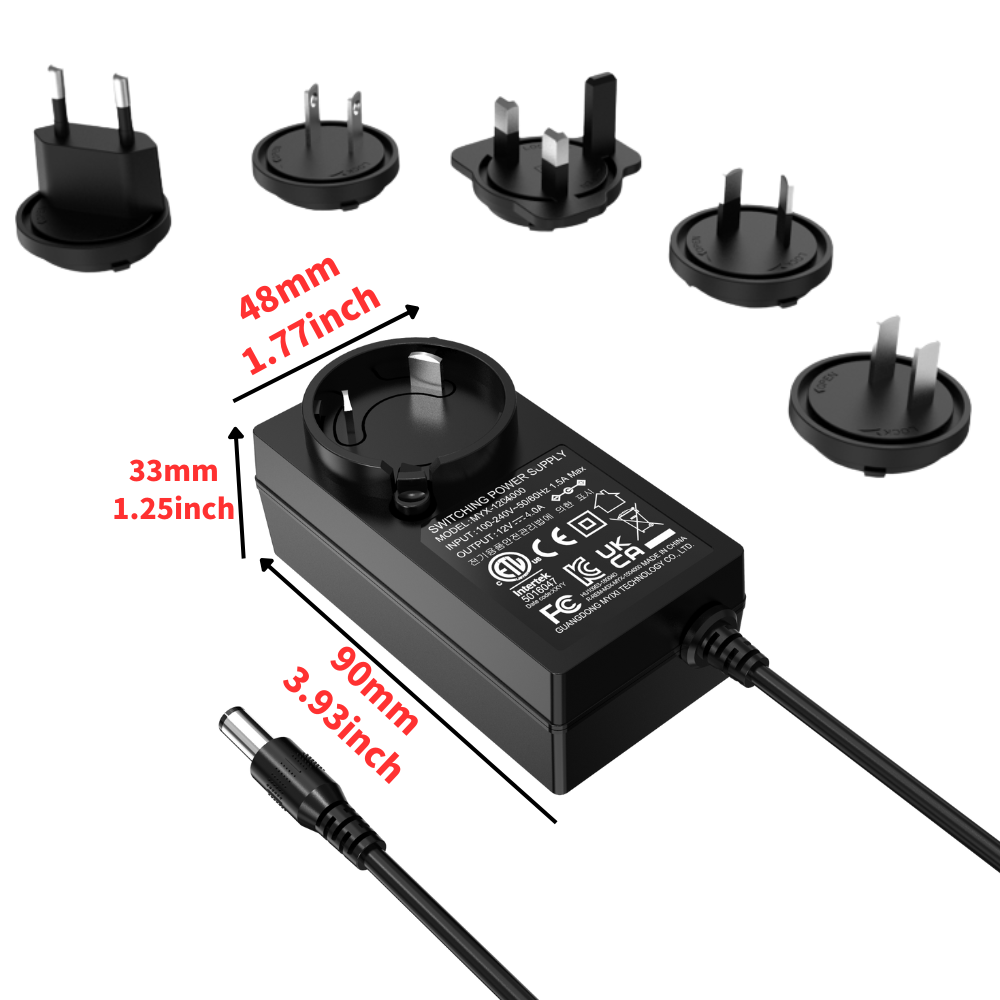

Mechanical Specifications
Housing type: Wall-mounted interchangeable adapter
Compact:
63 × 63 × 32mm
Slim:
90 × 48 × 32mm
Color: Black
AC interface: Interchangeable plug system
Output: Fixed DC cable
Features
Global interchangeable plug system for multi-country deployment
Dual housing design to fit different installation environments
Higher power output for commercial and industrial devices
Improved thermal performance for continuous operation
Reduces SKU complexity for distributors and OEM clients
Reliable long-term power delivery with industrial-grade protection
Model Coding
Model codes indicate power rating, output configuration, and connector type. Detailed model coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
