120W Desktop Power Adapter
Series Overview
This high-power desktop adapter series covers an output range from 84W to 120W, designed for demanding applications that require stable and continuous power delivery.
With a compact yet robust enclosure of 98 × 65 × 24mm, the series balances power density and thermal performance, making it suitable for both commercial and industrial environments.
It supports a wide range of output voltages and currents, offering flexibility for various equipment such as laptops, display systems, control units, and power tools.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-84W-DT | 12–16V / 19–24V | up to 6A | 84–90W | Optional | C8/C6/C14 | 0A | up to 6A | ±5% | ±1% | 240mV | High Power |
| MYX-100W-DT | 12–24V | up to 6A | 100–110W | Optional | C8/C6/C14 | 0A | up to 6A | ±5% | ±1% | 240mV | High Power |
| MYX-120W-DT | 12–56V | up to 6.5A | 120W | Optional | Optional | 0A | up to 6.5A | ±5% | ±1% | 560mV | 120W Output |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 84–120W
Wide output voltage range up to 56V
High efficiency design meeting international energy standards
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
Stable output for continuous high-load operation
Mechanical Specifications
Housing type: Desktop power adapter

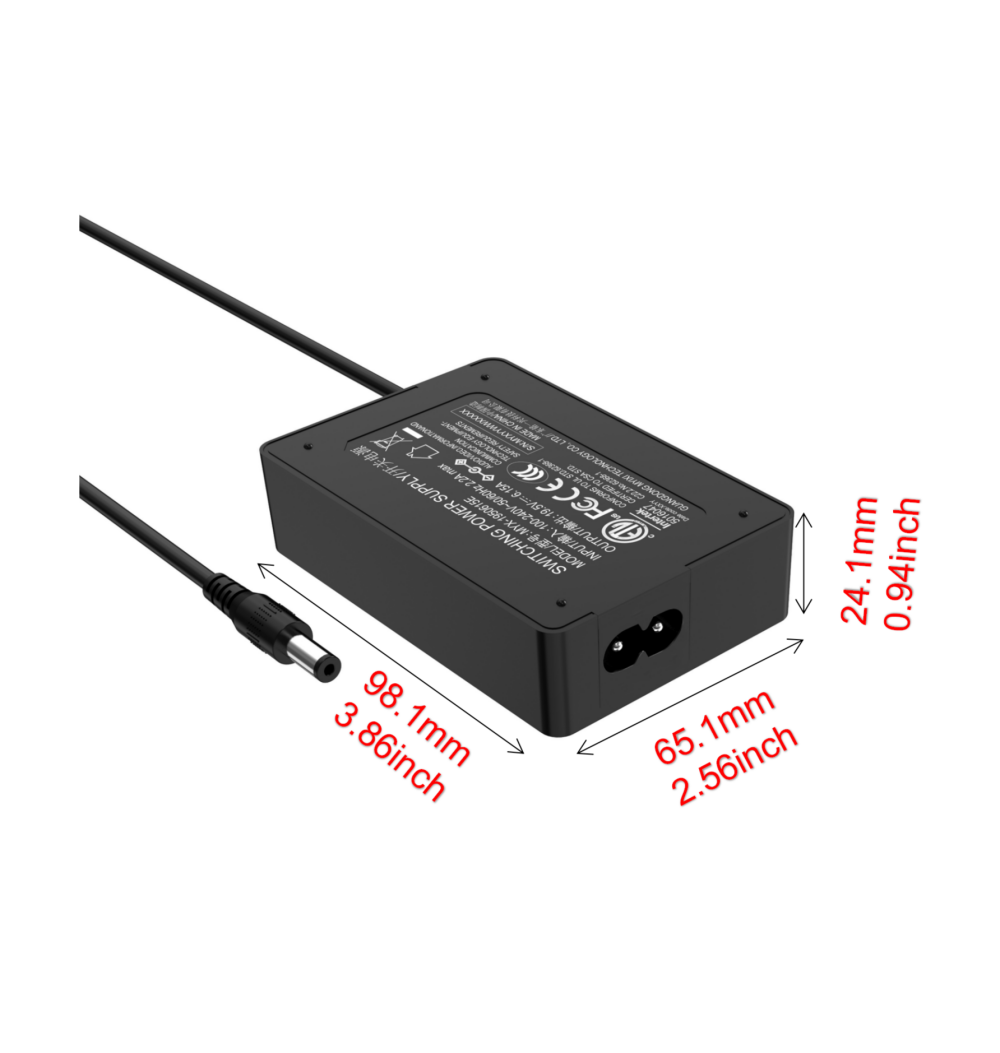

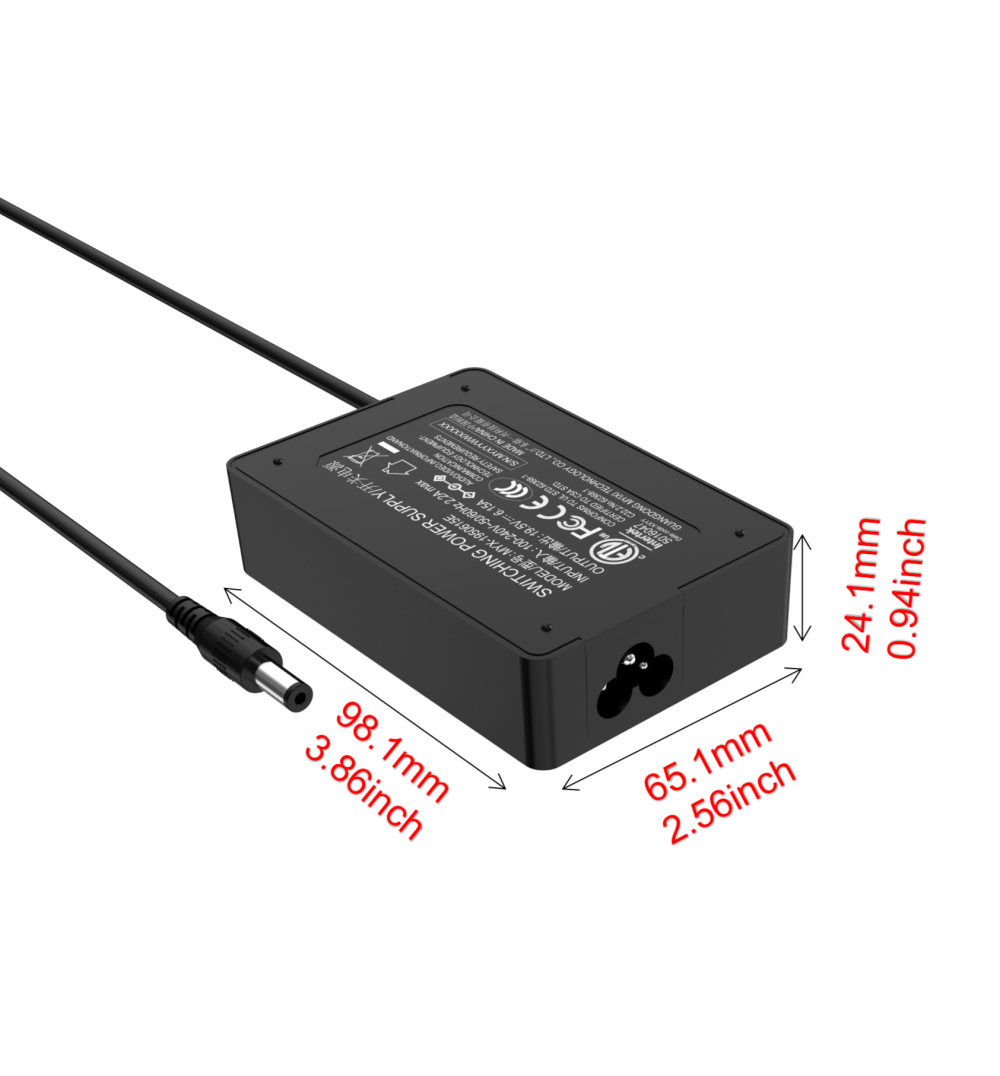

Dimensions: 98 × 65 × 24mm

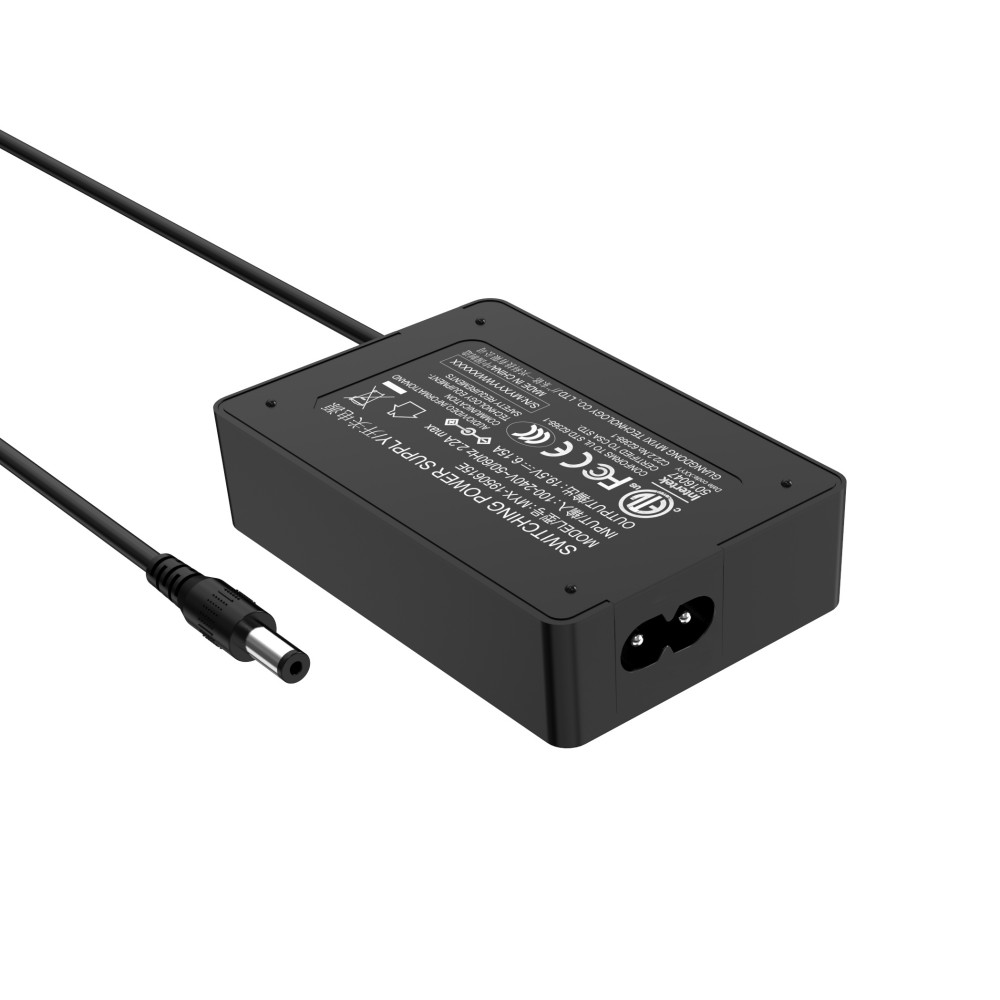

AC input: C6 / C8 inlet
Output interface: DC plug
Color: Black
Features
High power output up to 120W
Wide voltage and current configuration flexibility
Stable performance under continuous heavy load
Compact enclosure with optimized heat dissipation
Suitable for industrial and professional applications
Reliable long-term operation
Model Coding
Model codes indicate power rating, output configuration, and connector type. Detailed model coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
