24W Slim Wall-Mounted Power Adapter
Series Overview
This 6-24W slim wall-mounted power adapter features a vertical enclosure design, offering a more compact footprint and cleaner installation on wall outlets.
With dimensions of 56 × 42.5 × 28.5mm, it provides an optimized balance between size, power output, and usability. The slim form factor makes it suitable for space-limited environments while maintaining stable performance.
The series supports multiple AC plug types and flexible output configurations, making it ideal for consumer electronics, networking devices, and smart home applications.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-240050ZVC01 | 9.1–24.0V | 0.1–0.5A | 12W | Optional | Optional | 0A | 0.1–0.5A | ±5% | ±1% | 240mV | Slim |
| MYX-150160ZVC03 | 9–15.0V | 0.1–2.667A | 24W | Optional | Optional | 0A | 0.1–2.667A | ±5% | ±1% | 150mV | Slim |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: up to 24W
Output options: available upon request
Efficiency: Meet CEC Level VI / DoE / CoC Tier 2
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
MTBF: >100,000 hours
Mechanical Specifications
Housing type: Slim wall-mounted adapter (vertical)
Dimensions: 56 × 42.5 × 28.5mm

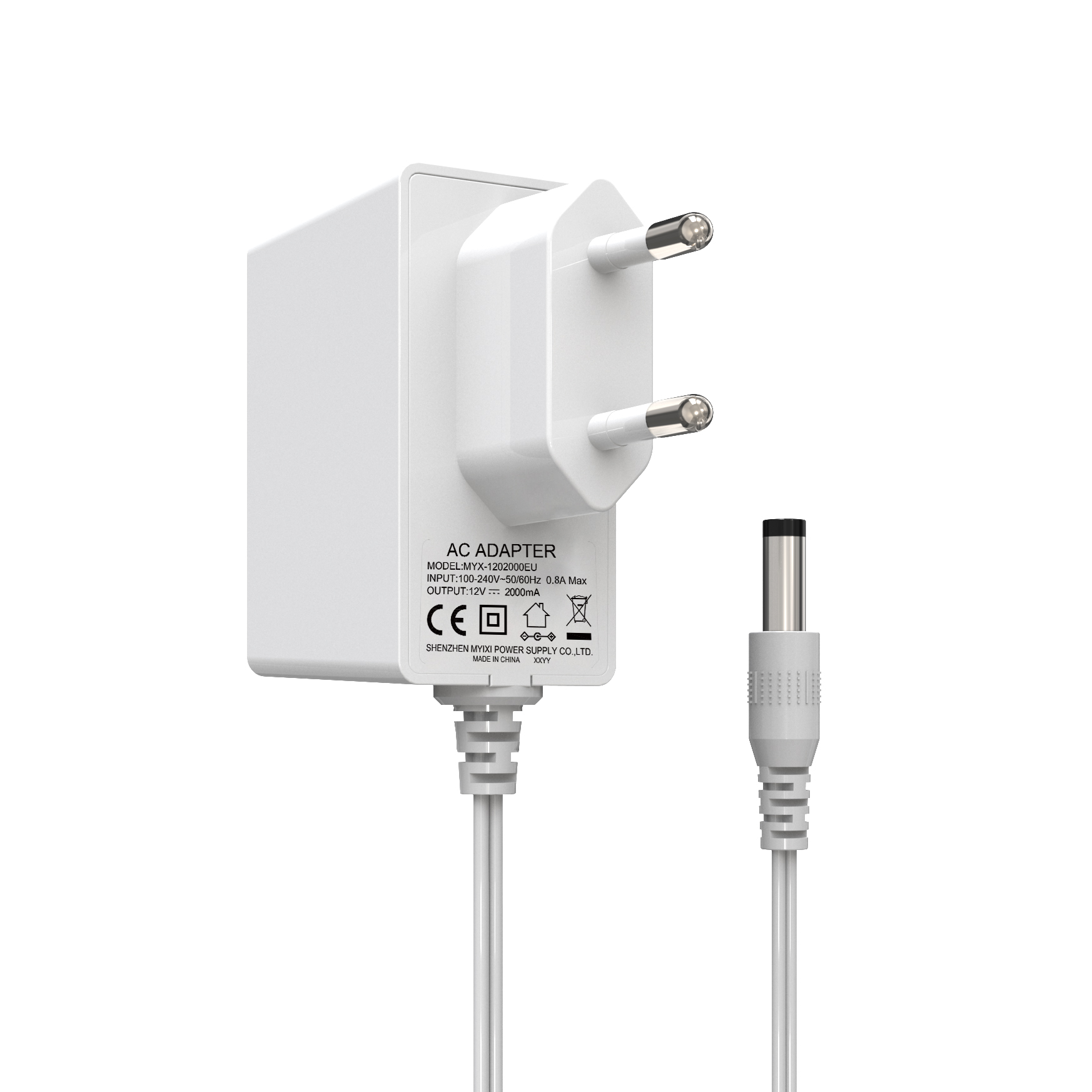

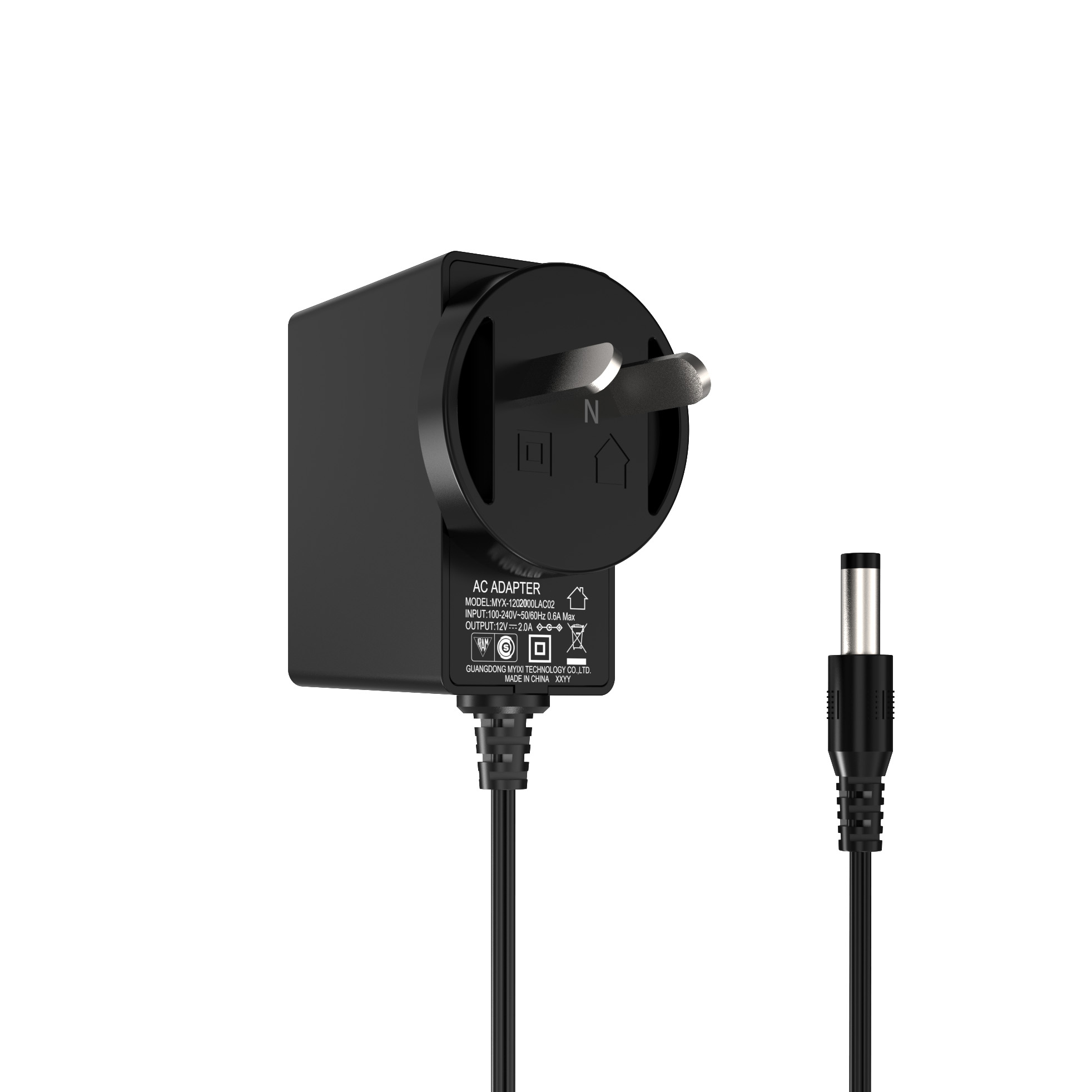

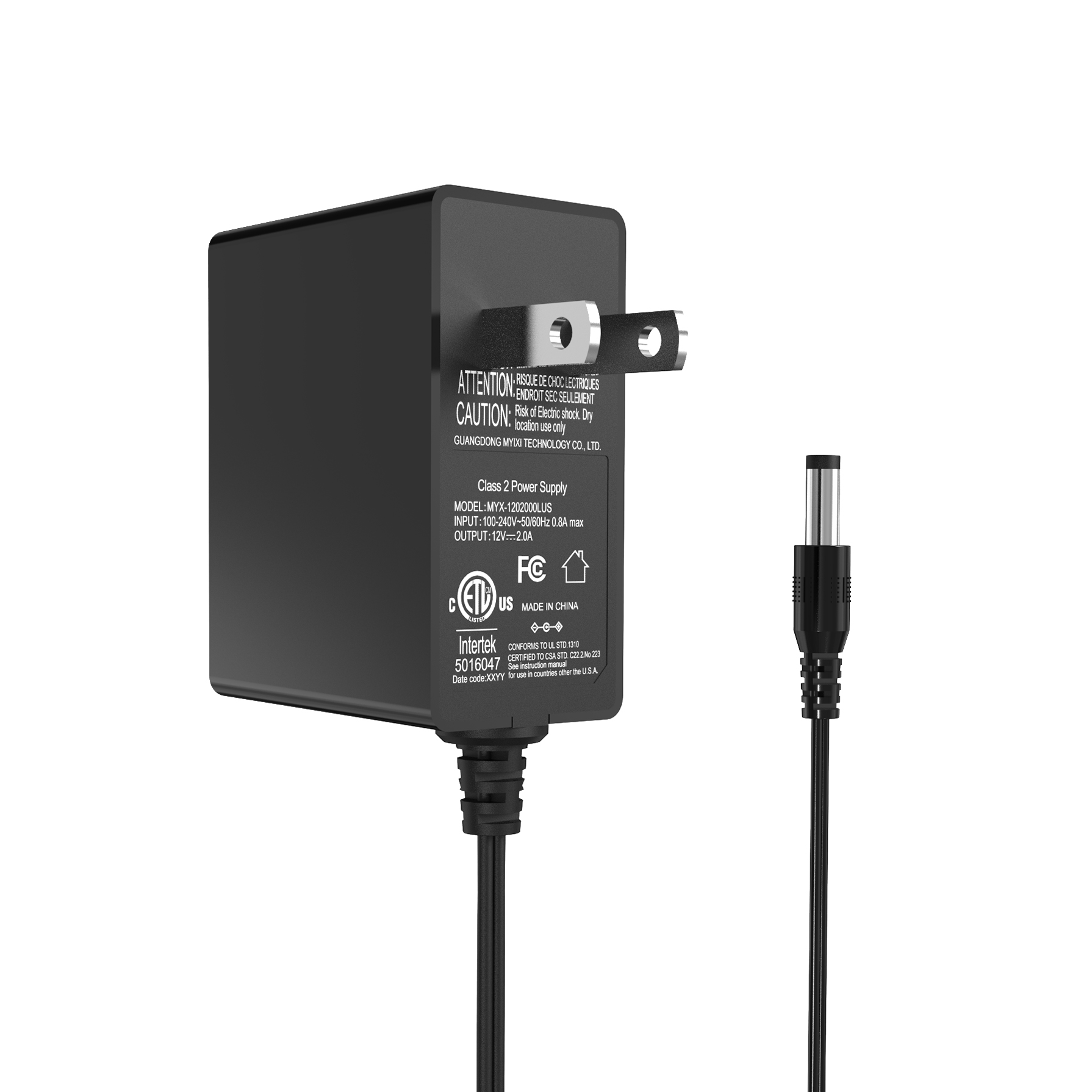

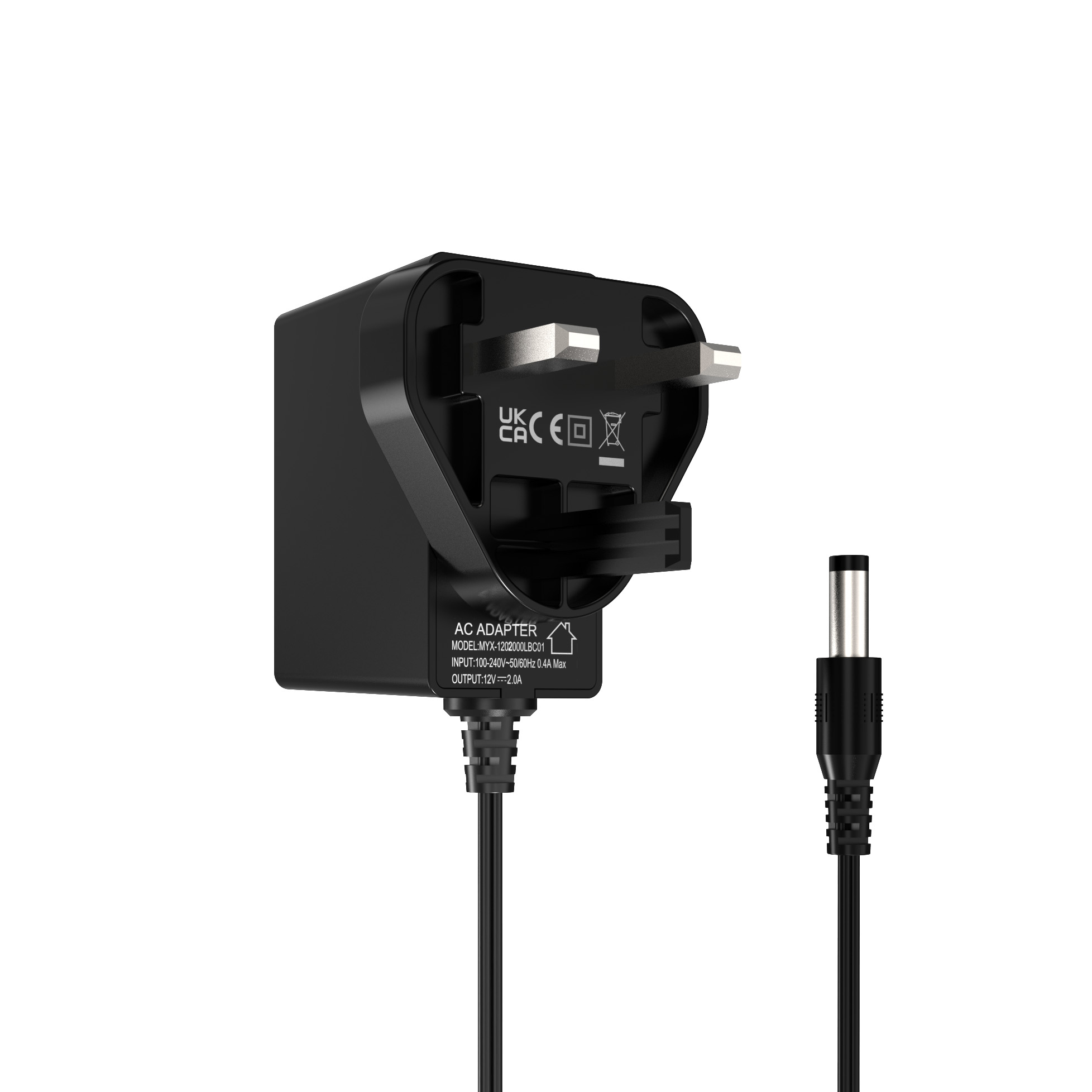

AC plug options: US / EU / UK / AU / JP / KR
Color: Black / White
Features
Slim vertical enclosure design
Space-saving footprint on wall outlets
Global AC plug compatibility
Stable performance up to 24W output
High reliability with long service life
Suitable for consumer electronics and smart devices
Model Coding
Model codes indicate output configuration, enclosure type, and plug type. Detailed coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
