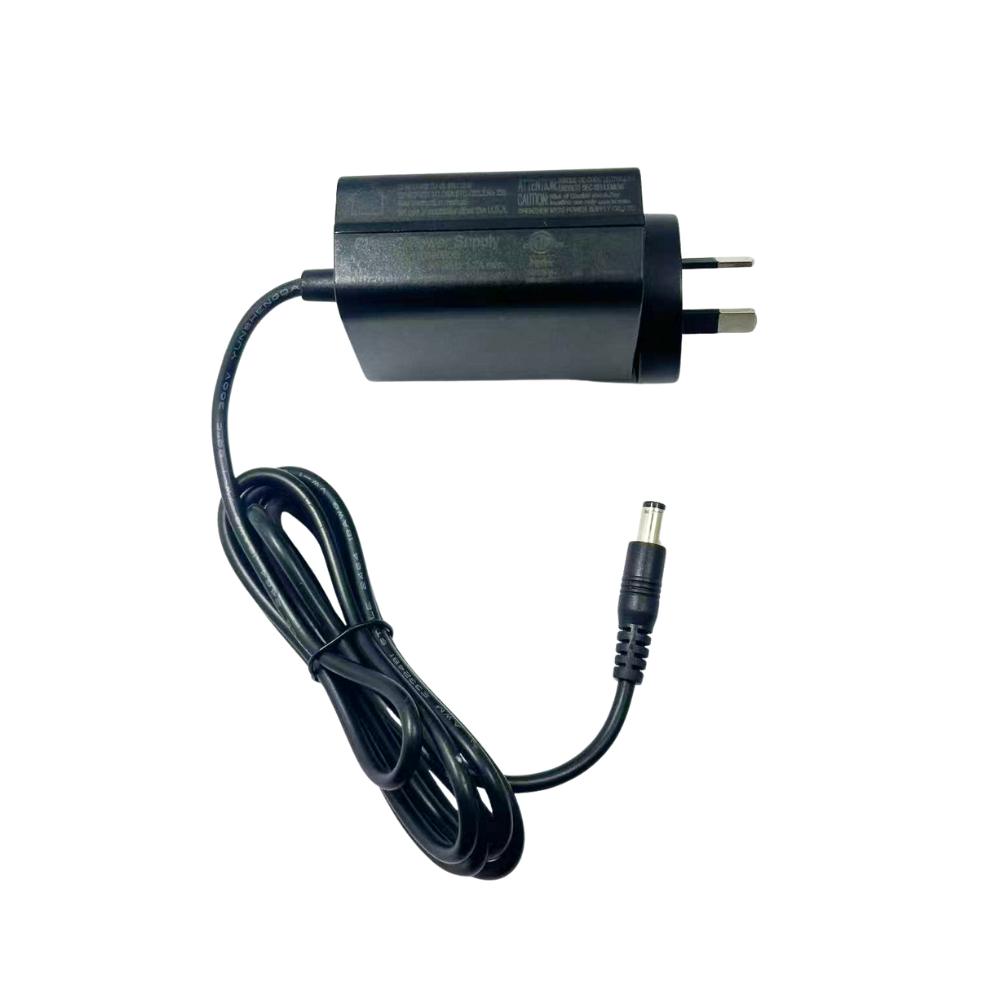

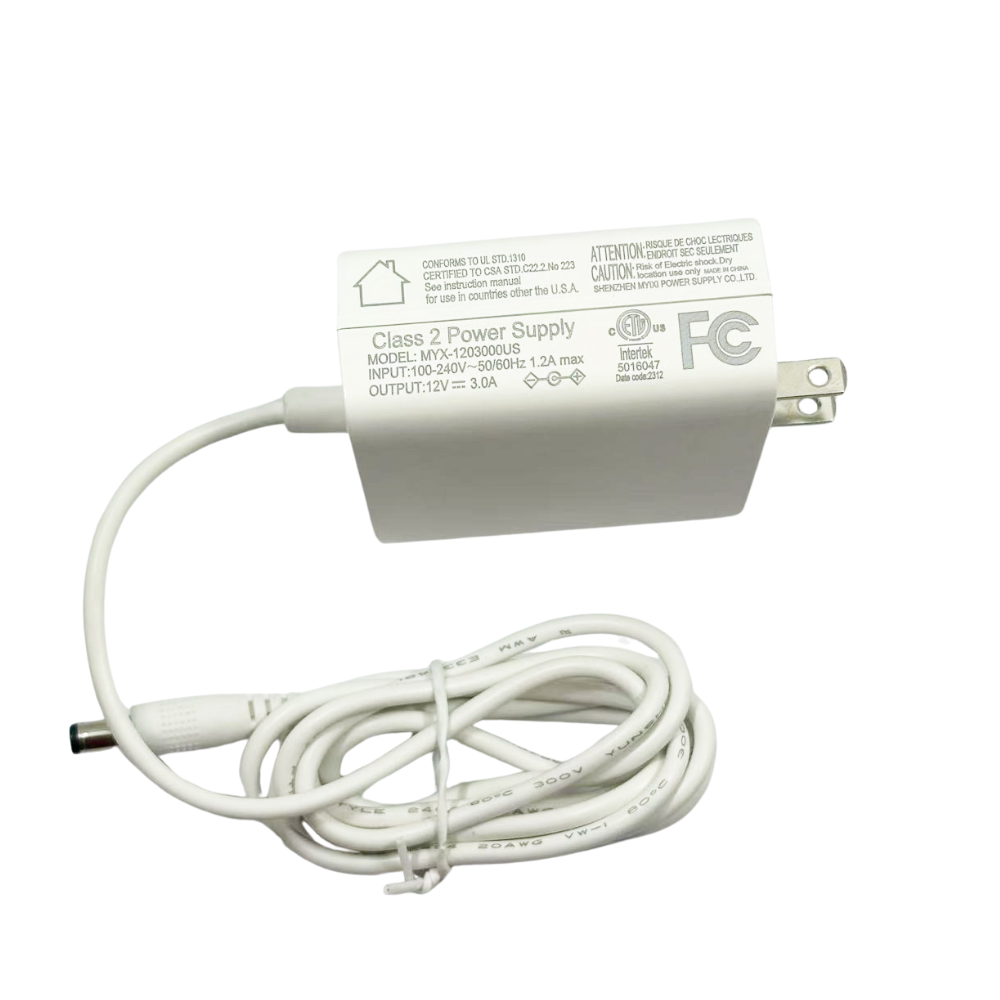

65W Compact Wall-Mounted Power Adapter
Series Overview
This compact wall-mounted power adapter series covers a power range from 49W to 65W, designed for high-power applications requiring stable and efficient performance.
With a robust enclosure and dimensions of 90 × 48 × 32mm, it provides excellent thermal performance and long-term reliability under continuous operation.
The series supports multiple AC plug types and flexible output configurations, making it suitable for displays, networking equipment, POS systems, and other high-power electronic devices.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-1204000ZZ | 9.0–12.0V | 0.1–4.0A | 48W | Optional | Optional | 0A | 0.1–4.0A | ±5% | ±1% | 240mV | Compact |
| MYX-1205000ZZ | 12.0V | 0.1–5.0A | 60W | Optional | Optional | 0A | 0.1–5.0A | ±5% | ±1% | 300mV | Compact |
| MYX-2402700ZZ | 15.0–24.0V | 0.1–2.7A | 65W | Optional | Optional | 0A | 0.1–2.7A | ±5% | ±1% | 360mV | Compact |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 49–65W
Output Voltage Range: 5V–36V
Efficiency: Meet CEC Level VI / DoE / CoC Tier 2
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
Mechanical Specifications
Housing type: Compact wall-mounted adapter (horizontal)
Dimensions: 90 × 48 × 32mm

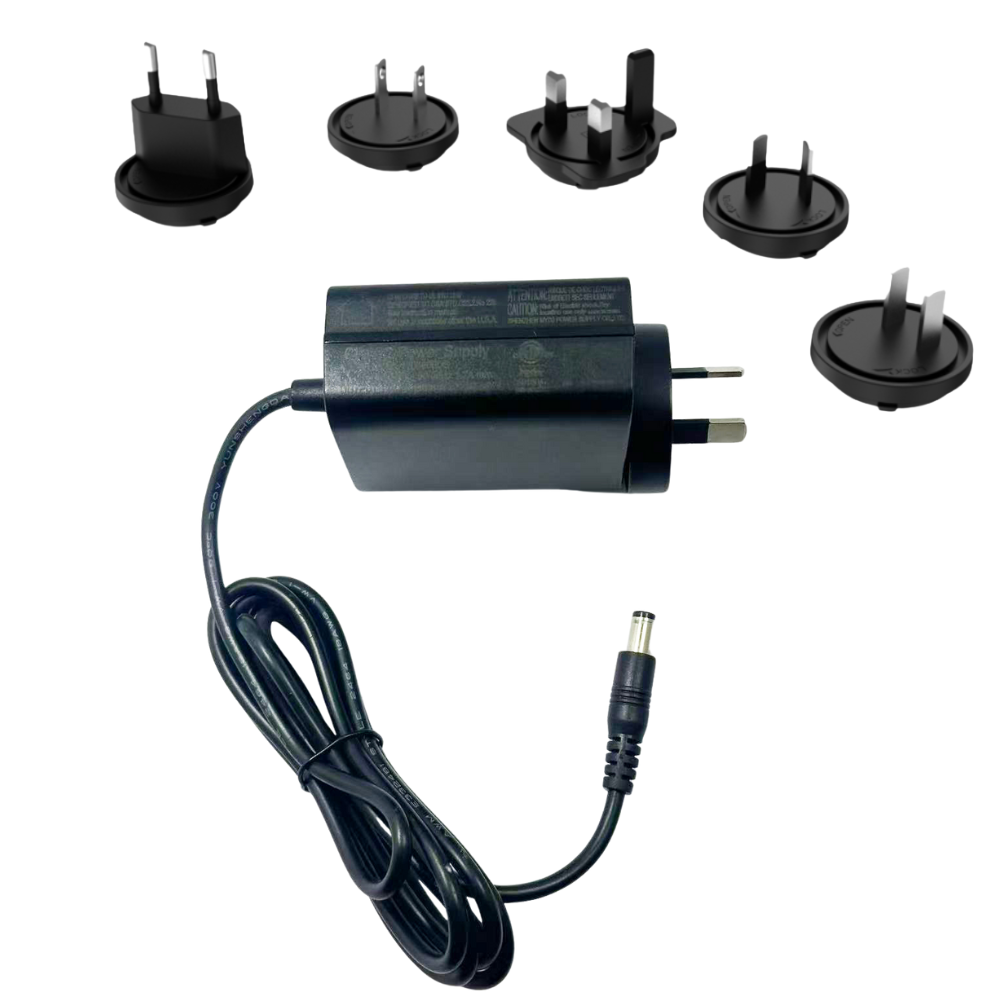

AC plug options: US / EU / UK / AU / JP / KR
Color: Black / White
Features
Power range from 49W to 65W
High power output for demanding applications
Compact and durable enclosure design
Wide output voltage flexibility
Global AC plug compatibility
Reliable performance for commercial and industrial use
Model Coding
Model codes indicate output voltage range, current configuration, enclosure type, and plug type. Detailed coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
