180W Desktop Power Adapter
Series Overview
This high-capacity desktop power adapter series delivers output power from 121W to 180W, designed for high-load applications requiring stable and continuous performance.
With an enlarged enclosure of 150.5 × 73.5 × 27.5mm, the design ensures improved thermal management and long-term reliability under heavy operating conditions.
Supporting a wide range of output configurations, this series is suitable for demanding equipment such as industrial terminals, display systems, power-intensive electronics, and commercial devices.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-150W-DT | 12–24V | up to 12.5A | 150W | Optional | C8/C6/C14 | 0A | up to 12.5A | ±5% | ±1% | 300mV | High Load |
| MYX-180W-DT | 12–24V | up to 6A | 100–110W | Optional | C8/C6/C14 | up to 12.5A | up to 12.5A | ±5% | ±1% | 300mV | High Load |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 121–180W
High current output up to 12.5A
Wide voltage range for different applications
Efficiency compliant with international energy standards
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
Designed for continuous high-load operation
Mechanical Specifications
Housing type: Desktop power adapter

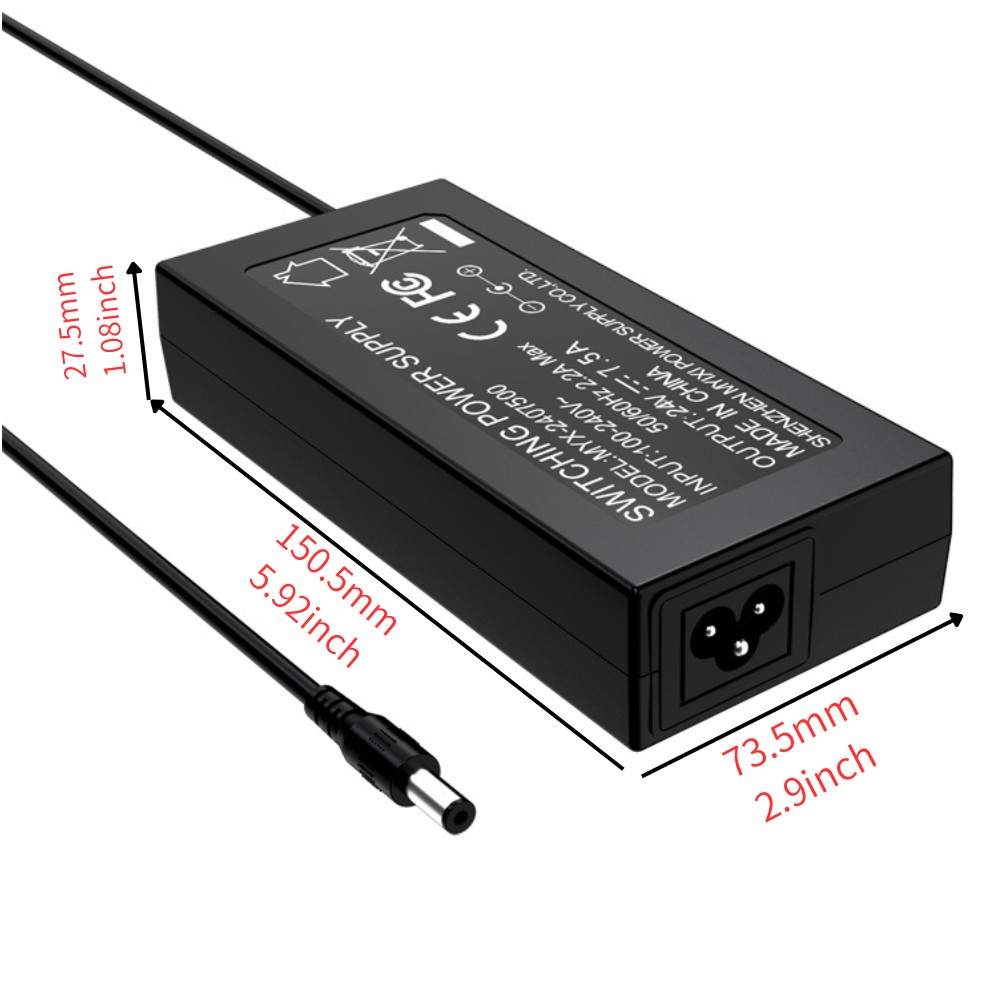

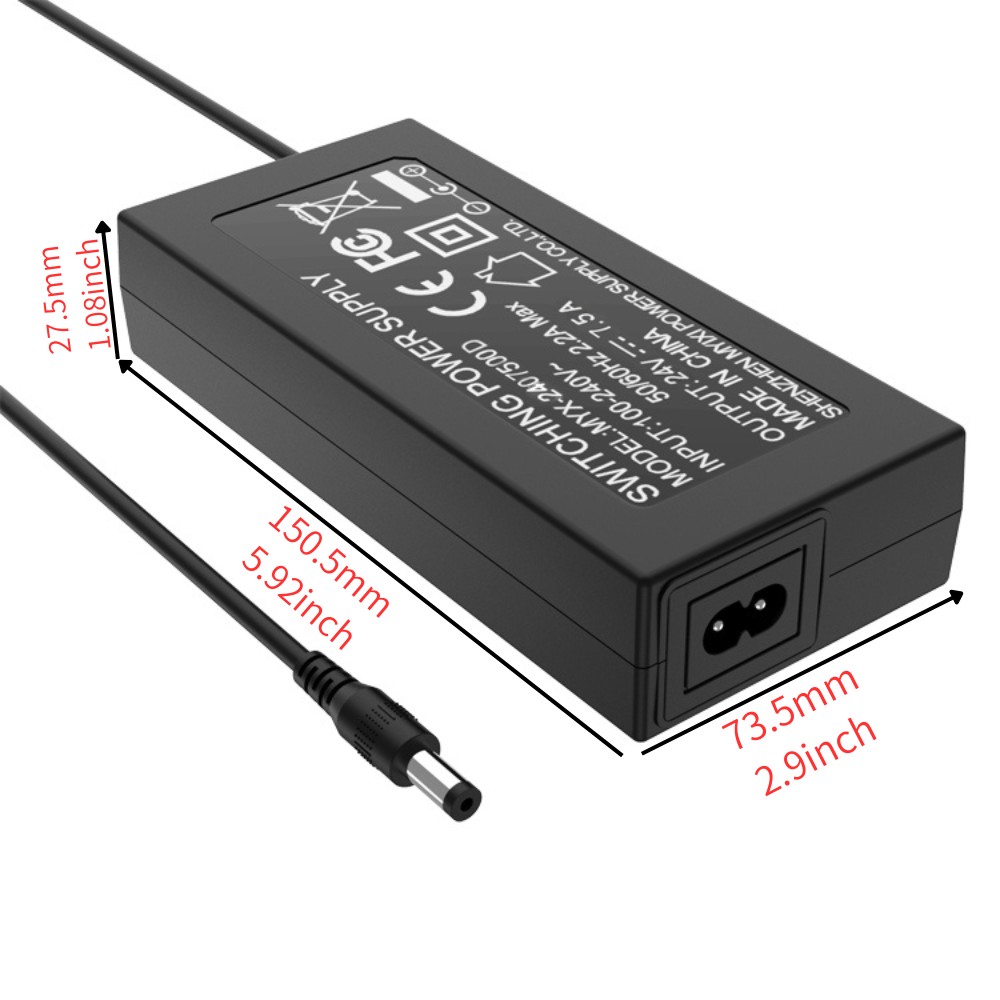

Dimensions: 150.5 × 73.5 × 27.5mm

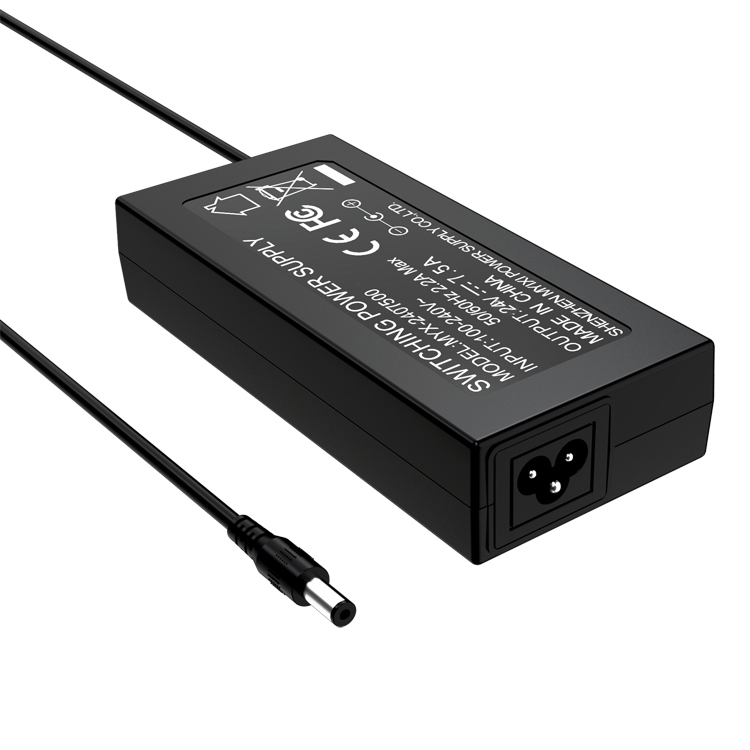

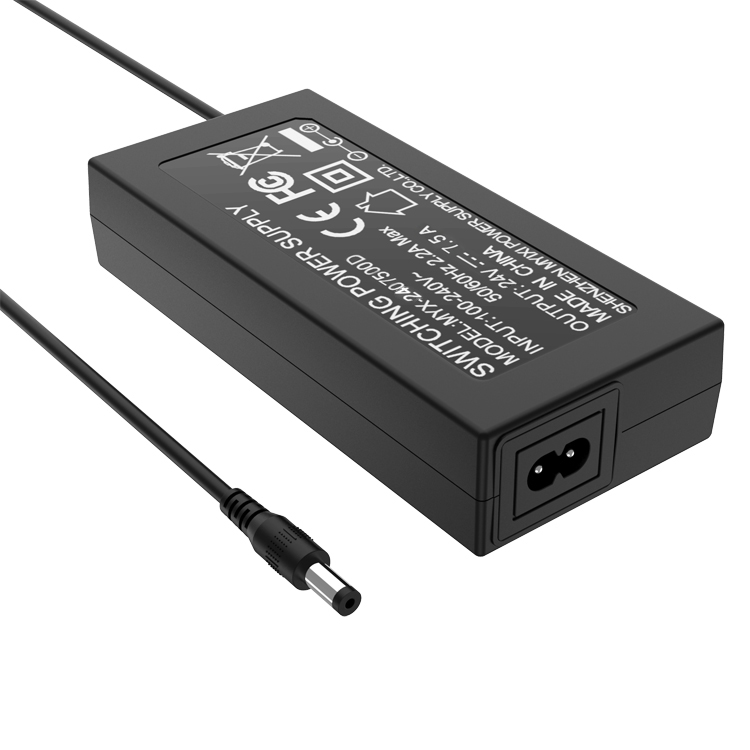

AC input: C6 / C8 / C14 inlet
Output interface: DC plug
Color: Black
Features
High power output up to 180W
Stable performance under heavy load conditions
Enhanced thermal design for long operating hours
High current output capability
Suitable for commercial and industrial-grade applications
Reliable and durable enclosure design
Model Coding
Model codes indicate power rating, output configuration, and connector type. Detailed model coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
