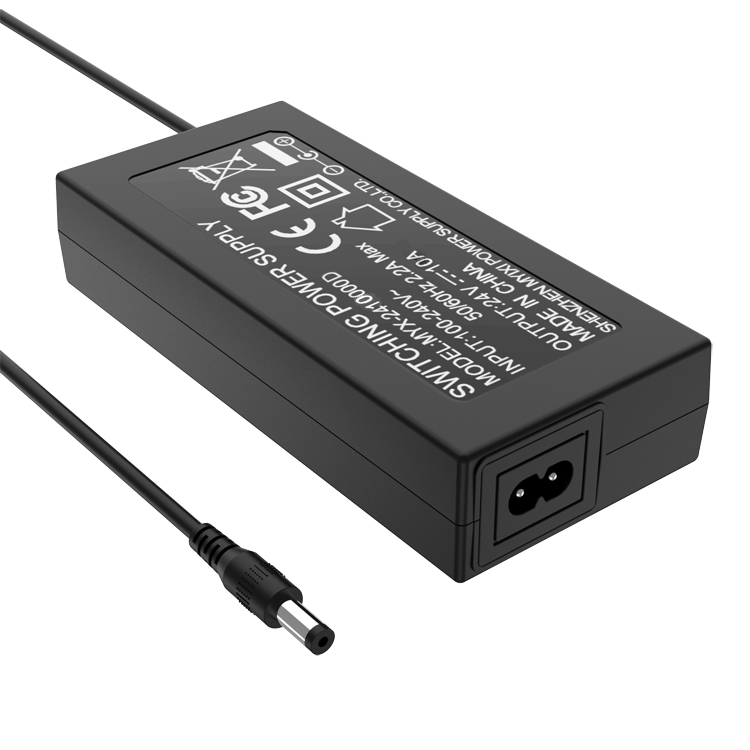

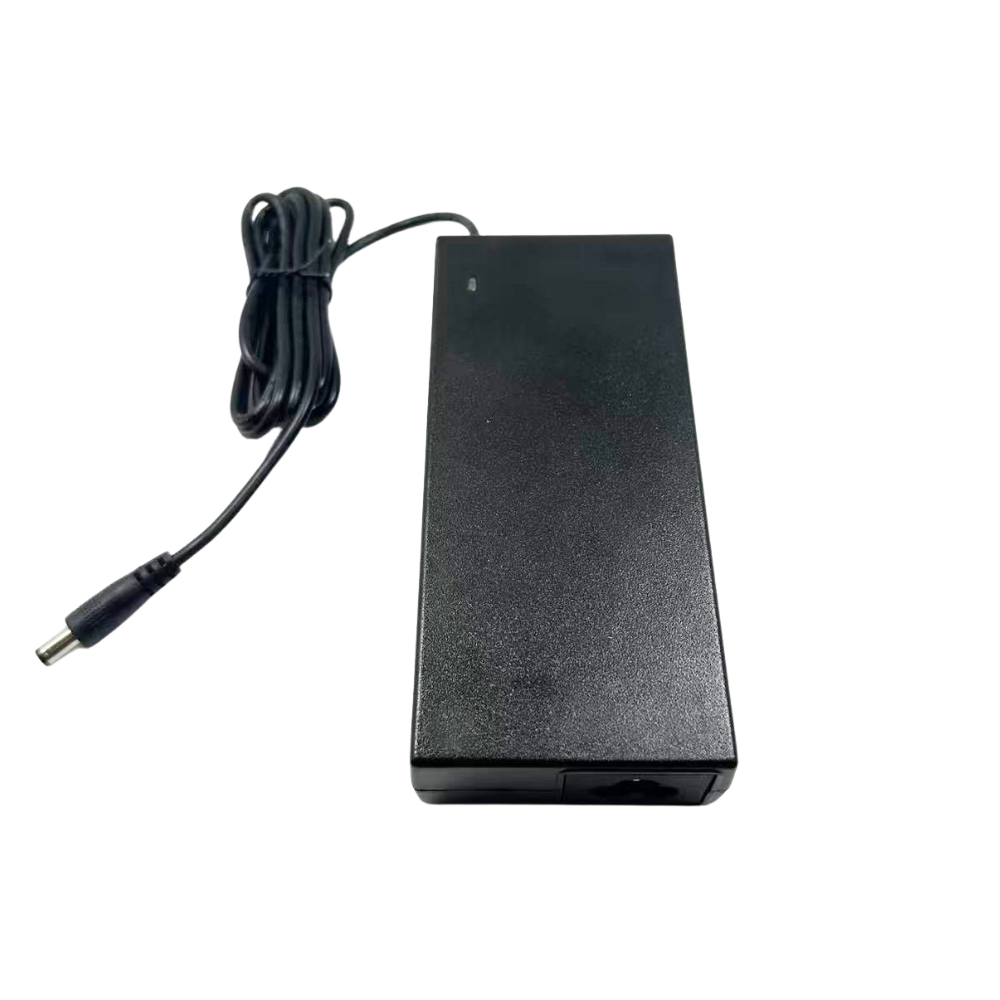

240W Desktop Power Adapter
Series Overview
This ultra high-power desktop adapter series delivers output power from 180W to 240W, engineered for demanding applications requiring continuous and stable high-load performance.
With an optimized enclosure of 150 × 68 × 33mm, the design ensures efficient heat dissipation and long-term operational reliability under intensive usage conditions.
The series supports a wide range of output configurations, making it suitable for industrial equipment, high-performance computing devices, large display systems, and commercial-grade electronics.
Technical Specifications
| Model | Vout | Iout | Pmax | Plug | Connector | Min. Load | Max. Load | Load Reg. | Line Reg. | Ripple / Noise | Notes |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MYX-180W-DT | 12–24V | up to 12A | 180W | Optional | C8/C6/C14 | 0A | up to 12A | ±5% | ±1% | 300mV | High Load |
| MYX-240W-DT | 12–36V | up to 6A | 200–240W | Optional | C8/C6/C14 | up to 12.5A | up to 12.5A | ±5% | ±1% | 300mV | Ultra High Power |
Product Highlights
Applications
- Consumer electronics
- Smart home devices
- Networking equipment
- LED lighting
- Small industrial devices
Key Features
- High efficiency performance
- Designed for long-term use
- Built-in safety protection
- Multiple plug and connectors
- Certified for global markets
Customization
- Project-based support
- OEM / ODM service
- Cable length customization
- Label / logo customization
- Packaging customization
Technical Details
Electrical Specifications
Input: 100-240VAC, 50/60Hz
Output Power: 180–240W
High current output capability
Wide voltage range for flexible applications
High efficiency design meeting international standards
Protections: Over-voltage, over-current, short-circuit, and over-temperature protection
Designed for continuous full-load operation
Mechanical Specifications
Housing type: Desktop power adapter

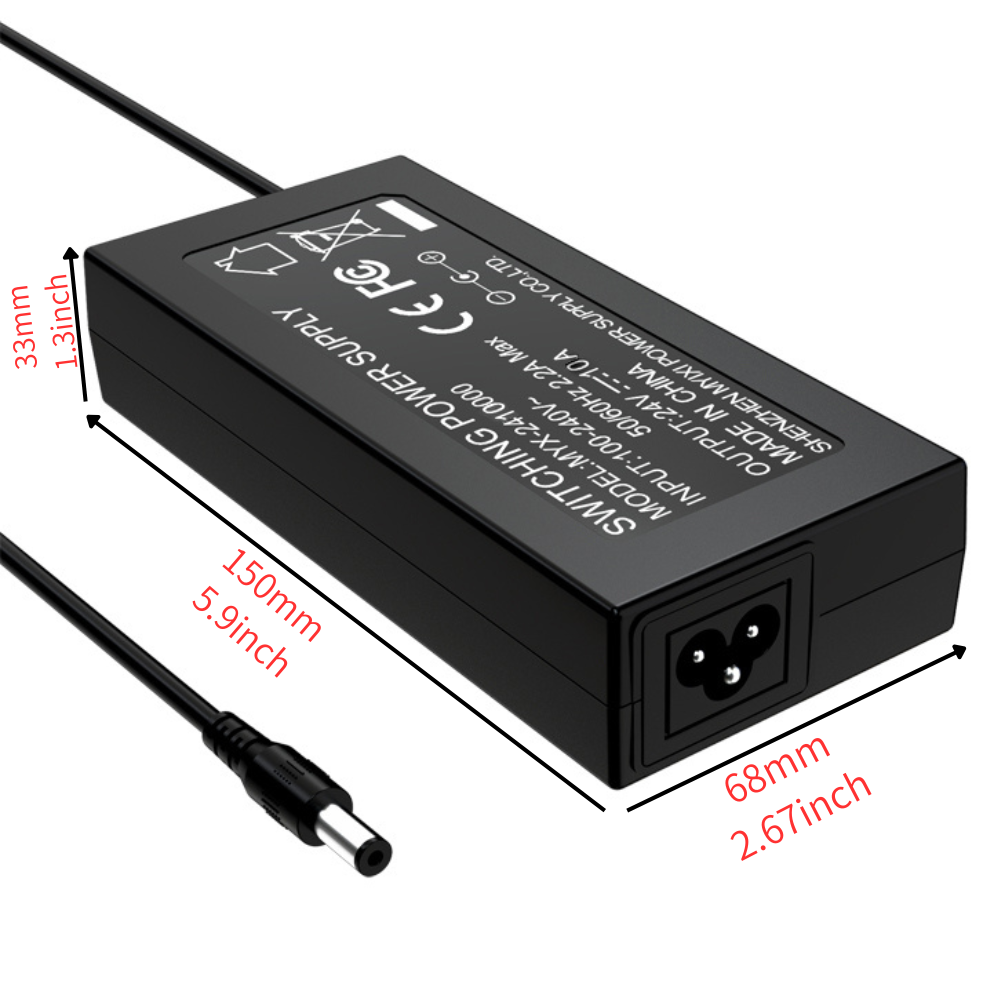

Dimensions: 150 × 68 × 33mm

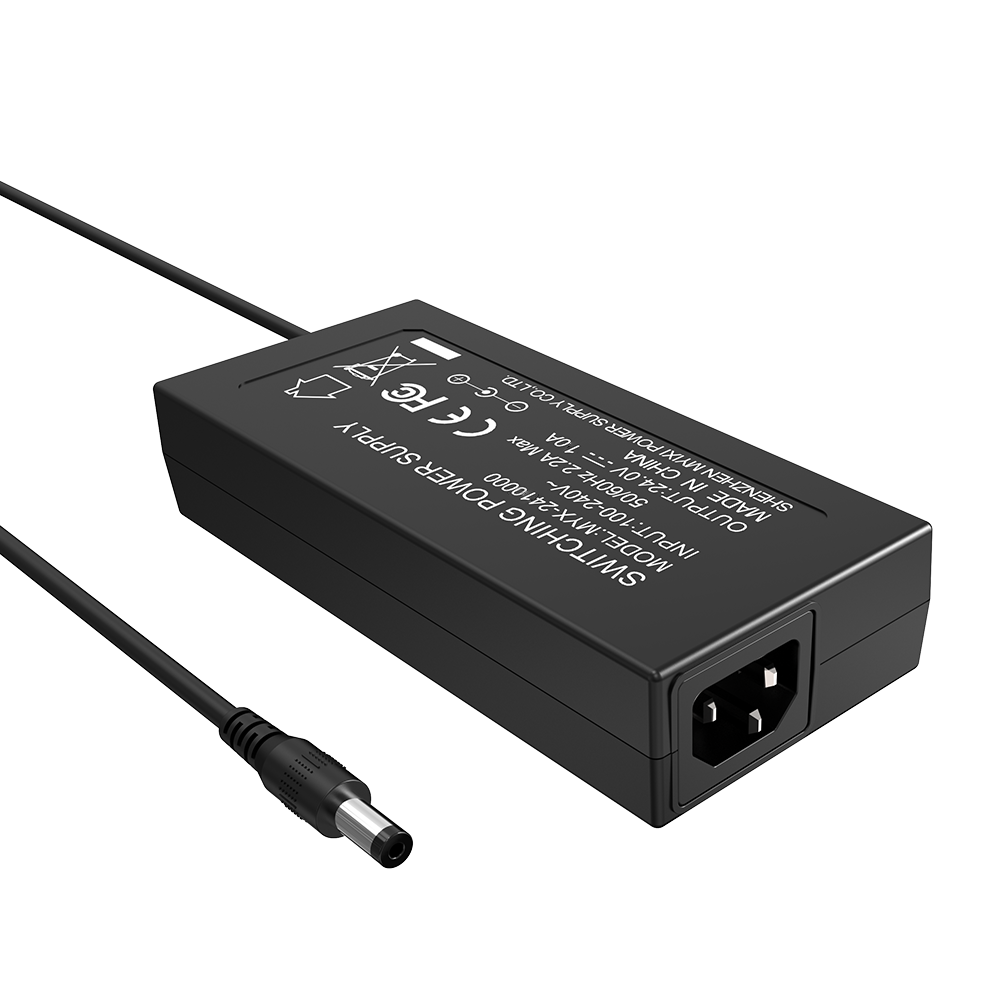

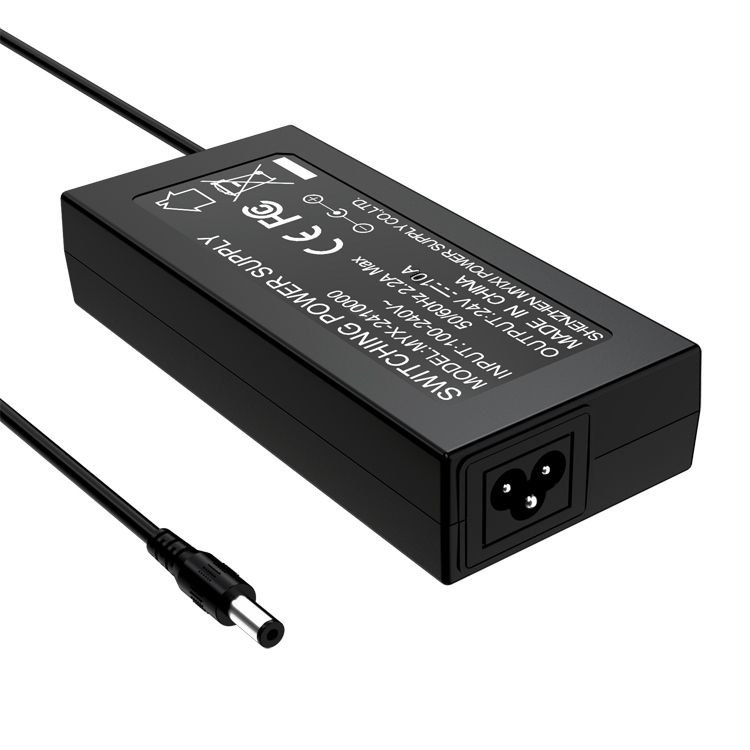

AC input: C6 / C8 / C14 inlet
Output interface: DC plug
Color: Black
Features
Ultra high power output up to 240W
Designed for continuous heavy-load operation
Enhanced thermal performance for long-term stability
High current delivery for demanding equipment
Robust enclosure for commercial and industrial environments
Reliable and durable for critical applications
Model Coding
Model codes indicate power rating, output configuration, and connector type. Detailed model coding information is available upon request.
Ordering & Delivery
Lead Time
Sample: 3-7 days / Mass production: 2-4 weeks
Packing Information
Standard export packaging. Custom packaging solutions available for retail and e-commerce applications.
Delivery Information
Samples are available for evaluation. Production and delivery schedules can be arranged based on customer requirements.
